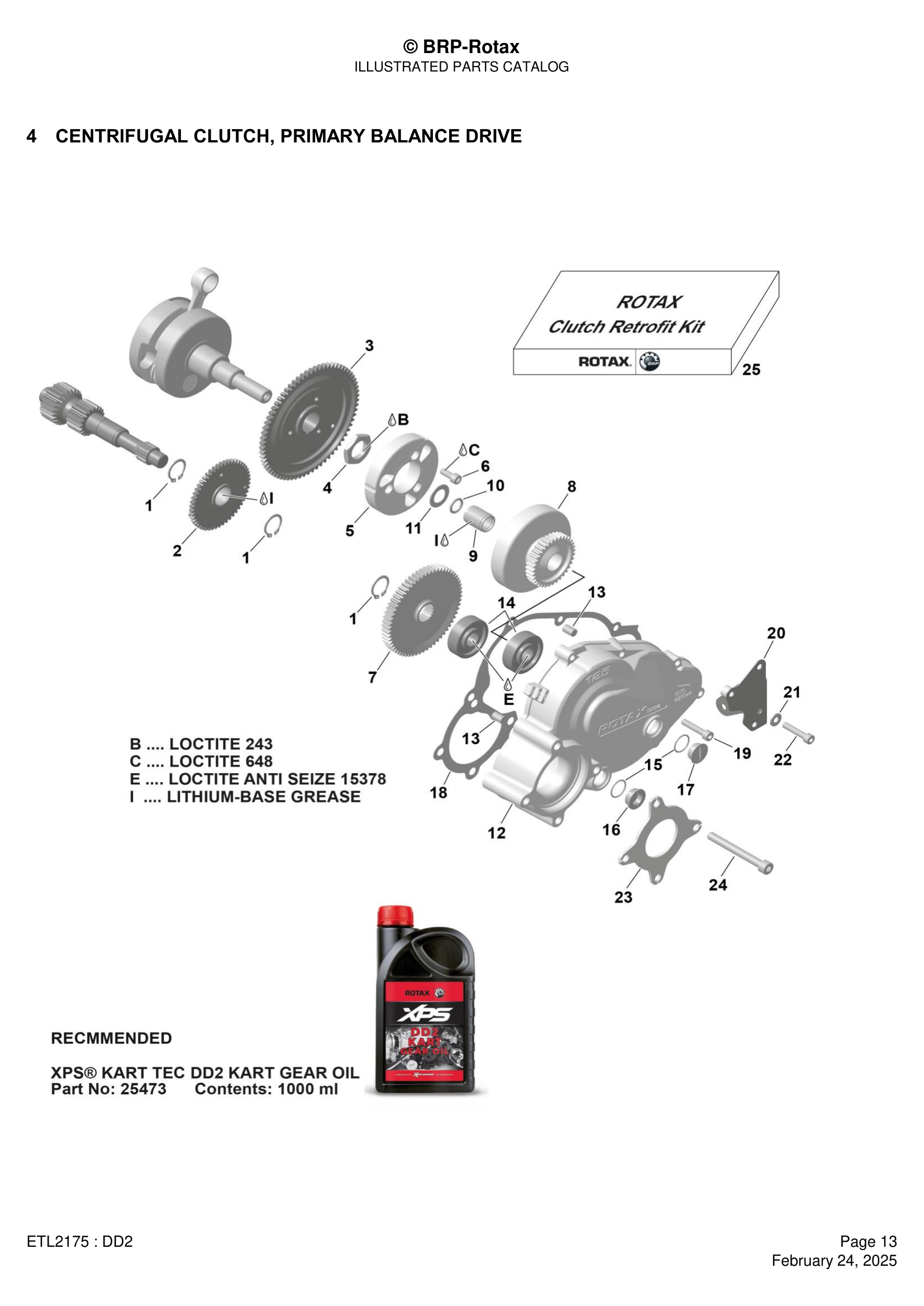

Ch. 4 — CENTRIFUGAL CLUTCH, PRIMARY BALANCE DRIVE

Rotax DD2 MAX EVO

Hide n/a for Rotax DD2 MAX EVO

Item #1

945664 · RETAINING RING WITH LUG DIN 983-20X1,2 · € 0.53 ex VAT incl. 21% VAT € 0.64 · qty 3

Item #1

945664 · RETAINING RING WITH LUG DIN 983-20X1,2 · € 0.53 ex VAT incl. 21% VAT € 0.64 · qty 3

Item #1

945664 · RETAINING RING WITH LUG DIN 983-20X1,2 · € 0.53 ex VAT incl. 21% VAT € 0.64 · qty 3

Item #2

635749 · BALANCE GEAR 50 T ASSY. · € 78.12 ex VAT incl. 21% VAT € 94.53 · qty 1

Item #3

434844 · STARTER GEAR 70 T ASSY. · € 148.68 ex VAT incl. 21% VAT € 179.90 · qty 1

Item #4

242873 · HEX.NUT M22X1,5 H=6 · € 4.47 ex VAT incl. 21% VAT € 5.41 · qty 1

Item #5

659905 · CLUTCH · € 113.61 ex VAT incl. 21% VAT € 137.47 · qty 1

Item #6

640901 · ALLEN SCREW M6X16 DIN 912 · € 0.53 ex VAT incl. 21% VAT € 0.64 · qty 3

Item #7 — pick a variant

Item #8 — pick a variant

Item #9

632410 · qty 1

Item #10

950815 · O-RING DIN 3771-12X2,5-N, NBR 70 · € 1.22 ex VAT incl. 21% VAT € 1.48 · qty 1

Item #11

927057 · THRUST WASHER 15,2/25/1 · € 2.33 ex VAT incl. 21% VAT € 2.82 · qty 1

Item #12

610643 · CLUTCH COVER · € 188.95 ex VAT incl. 21% VAT € 228.63 · qty 1

Item #13

632010 · qty 2

Item #13

632010 · qty 2

Item #14

232291 · BALL BEARING 6302 TN9C3/15-42-13 · € 12.77 ex VAT incl. 21% VAT € 15.45 · qty 2

Item #15

250890 · O-RING DIN 3771-17X1,5-N · € 1.14 ex VAT incl. 21% VAT € 1.38 · qty 2

Item #16

240820 · OIL LEVEL SCREW M18X1,5 · € 2.92 ex VAT incl. 21% VAT € 3.53 · qty 1

Item #17

241800 · PLUG SCREW M18X1,5 · € 1.96 ex VAT incl. 21% VAT € 2.37 · qty 1

Item #18

630512 · GASKET · € 7.18 ex VAT incl. 21% VAT € 8.69 · qty 1

Item #19

840888 · ALLEN SCREW ISO 4762 - M6x30 - 8.8 · € 0.42 ex VAT incl. 21% VAT € 0.51 · qty 4

Item #20

651063 · RETAINING PLATE ASSY. · € 11.52 ex VAT incl. 21% VAT € 13.94 · qty 1

Item #21

244211 · WASHER 6,4 DIN 134 · € 0.15 ex VAT incl. 21% VAT € 0.18 · qty 2

Item #22

241956 · ALLEN SCREW M6X40 ISO 4762-8.8 MC · € 0.42 ex VAT incl. 21% VAT € 0.51 · qty 2

Item #23

251335 · SUPPORT PLATE · € 10.50 ex VAT incl. 21% VAT € 12.71 · qty 1

Item #24

841991 · ALLEN SCREW M8X70 · € 1.11 ex VAT incl. 21% VAT € 1.34 · qty 4

Item #25

281723 · RETROFIT KIT CLUTCH 125 MAX DD2 · € 402.27 ex VAT incl. 21% VAT € 486.75 · qty 1

Part	Description	Qty	Price
945664	RETAINING RING WITH LUG DIN 983-20X1,2 RETAINING RING WITH LUG DIN 983-20X1,2	3	€ 0.53 ex VAT incl. 21% VAT € 0.64
635749	BALANCE GEAR 50 T ASSY. BALANCE GEAR 50 T ASSY.	1	€ 78.12 ex VAT incl. 21% VAT € 94.53
434844	STARTER GEAR 70 T ASSY. STARTER GEAR 70 T ASSY.	1	€ 148.68 ex VAT incl. 21% VAT € 179.90
242873	HEX.NUT M22X1,5 H=6 HEX.NUT M22X1,5 H=6	1	€ 4.47 ex VAT incl. 21% VAT € 5.41
659905	CLUTCH CLUTCH	1	€ 113.61 ex VAT incl. 21% VAT € 137.47
640901	ALLEN SCREW M6X16 DIN 912 ALLEN SCREW M6X16 DIN 912	3	€ 0.53 ex VAT incl. 21% VAT € 0.64
435541	SECONDARY GEAR 65 T SECONDARY GEAR 65 T	1	€ 63.11 ex VAT incl. 21% VAT € 76.36
435547	SECONDARY GEAR 59 T SECONDARY GEAR 59 T	1	€ 63.11 ex VAT incl. 21% VAT € 76.36
435546	SECONDARY GEAR 60 T SECONDARY GEAR 60 T	1	€ 63.11 ex VAT incl. 21% VAT € 76.36
435542	SECONDARY GEAR 64 T SECONDARY GEAR 64 T	1	€ 63.11 ex VAT incl. 21% VAT € 76.36
435544	SECONDARY GEAR 62 T SECONDARY GEAR 62 T	1	€ 63.11 ex VAT incl. 21% VAT € 76.36
435545	SECONDARY GEAR 61 T SECONDARY GEAR 61 T	1	€ 63.11 ex VAT incl. 21% VAT € 76.36
435543	SECONDARY GEAR 63 T SECONDARY GEAR 63 T	1	€ 63.11 ex VAT incl. 21% VAT € 76.36
659920	CLUTCH W. PRIMARY DRIVE GEAR 34T CLUTCH W. PRIMARY DRIVE GEAR 34T	1	€ 77.50 ex VAT incl. 21% VAT € 93.78
659922	CLUTCH W. PRIMARY DRIVE GEAR 32T CLUTCH W. PRIMARY DRIVE GEAR 32T	1	€ 77.50 ex VAT incl. 21% VAT € 93.78
659923	CLUTCH W. PRIMARY DRIVE GEAR 33T CLUTCH W. PRIMARY DRIVE GEAR 33T	1	€ 77.50 ex VAT incl. 21% VAT € 93.78
659924	CLUTCH W. PRIMARY DRIVE GEAR 35T CLUTCH W. PRIMARY DRIVE GEAR 35T	1	€ 77.50 ex VAT incl. 21% VAT € 93.78
659926	CLUTCH W. PRIMARY DRIVE GEAR 36T CLUTCH W. PRIMARY DRIVE GEAR 36T	1	€ 77.50 ex VAT incl. 21% VAT € 93.78
659927	CLUTCH W. PRIMARY DRIVE GEAR 37T CLUTCH W. PRIMARY DRIVE GEAR 37T	1	€ 77.50 ex VAT incl. 21% VAT € 93.78
659928	CLUTCH W. PRIMARY DRIVE GEAR 38T CLUTCH W. PRIMARY DRIVE GEAR 38T	1	€ 77.50 ex VAT incl. 21% VAT € 93.78
632410	—	1	—	N/A
950815	O-RING DIN 3771-12X2,5-N, NBR 70 O-RING DIN 3771-12X2,5-N, NBR 70	1	€ 1.22 ex VAT incl. 21% VAT € 1.48
927057	THRUST WASHER 15,2/25/1 THRUST WASHER 15,2/25/1	1	€ 2.33 ex VAT incl. 21% VAT € 2.82
610643	CLUTCH COVER CLUTCH COVER	1	€ 188.95 ex VAT incl. 21% VAT € 228.63
632010	—	2	—	N/A
232291	BALL BEARING 6302 TN9C3/15-42-13 BALL BEARING 6302 TN9C3/15-42-13	2	€ 12.77 ex VAT incl. 21% VAT € 15.45
250890	O-RING DIN 3771-17X1,5-N O-RING DIN 3771-17X1,5-N	2	€ 1.14 ex VAT incl. 21% VAT € 1.38
240820	OIL LEVEL SCREW M18X1,5 OIL LEVEL SCREW M18X1,5	1	€ 2.92 ex VAT incl. 21% VAT € 3.53
241800	PLUG SCREW M18X1,5 PLUG SCREW M18X1,5	1	€ 1.96 ex VAT incl. 21% VAT € 2.37
630512	GASKET GASKET	1	€ 7.18 ex VAT incl. 21% VAT € 8.69
840888	ALLEN SCREW ISO 4762 - M6x30 - 8.8 ALLEN SCREW ISO 4762 - M6x30 - 8.8	4	€ 0.42 ex VAT incl. 21% VAT € 0.51
651063	RETAINING PLATE ASSY. RETAINING PLATE ASSY.	1	€ 11.52 ex VAT incl. 21% VAT € 13.94
244211	WASHER 6,4 DIN 134 WASHER 6,4 DIN 134	2	€ 0.15 ex VAT incl. 21% VAT € 0.18
241956	ALLEN SCREW M6X40 ISO 4762-8.8 MC ALLEN SCREW M6X40 ISO 4762-8.8 MC	2	€ 0.42 ex VAT incl. 21% VAT € 0.51
251335	SUPPORT PLATE SUPPORT PLATE	1	€ 10.50 ex VAT incl. 21% VAT € 12.71
841991	ALLEN SCREW M8X70 ALLEN SCREW M8X70	4	€ 1.11 ex VAT incl. 21% VAT € 1.34
281723	RETROFIT KIT CLUTCH 125 MAX DD2 RETROFIT KIT CLUTCH 125 MAX DD2	1	€ 402.27 ex VAT incl. 21% VAT € 486.75
